QS32XVH245Q2G
Manufacturer:
Integrated Device Technology
Mfr.Part #:
QS32XVH245Q2G
Datasheet:
Description:

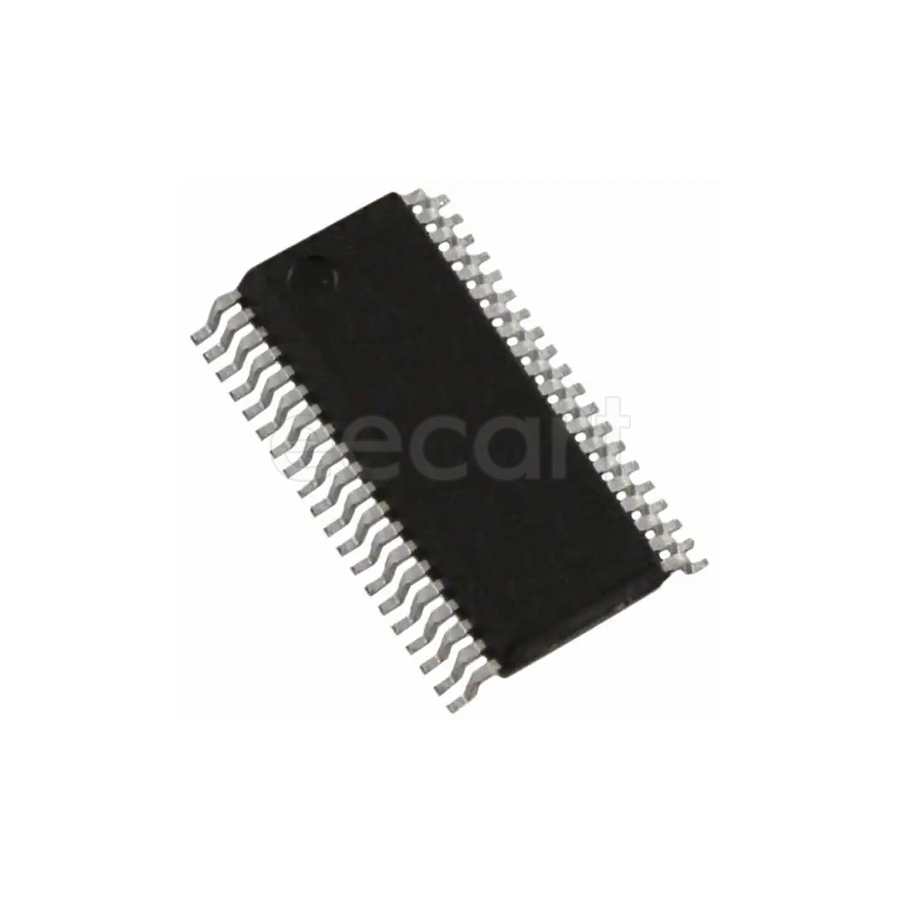

Digital Bus Switch ICs QVSOP-40 SMD/SMT 16 2.3 V to 3.6 V 9 Ω 200 ps
| Parameter | Value |
|---|---|
| Length | 9.9 mm |
| Width | 3.81 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 40 |
| Resistance | 9 Ω |
| Packaging | Tube |
| Thickness | 1.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Bus Switch |
| Number of Elements | 2 |
| Interface | |
| Output Current | |
| Operating Supply Voltage | 2.3 V to 3.6 V |
| Output Type | |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.3 V |
| Number of Bits | 16 |
| Turn-On Delay Time | 8 ns |
| Turn-Off Delay Time | |
| Quiescent Current | 6 mA |
| Propagation Delay | 200 ps |
| Low Level Output Current | 120 mA |
| Supply Type | Single |
| Number of Outputs | |
| Nominal Supply Current | 4 mA |
| Fault Protection | |
| Independent Circuits | 2 |
| On Resistance (RON) | 9 Ω |
| Current Limit | |
| Number of Circuits | 1 x 8:1 |
Out of Stock
